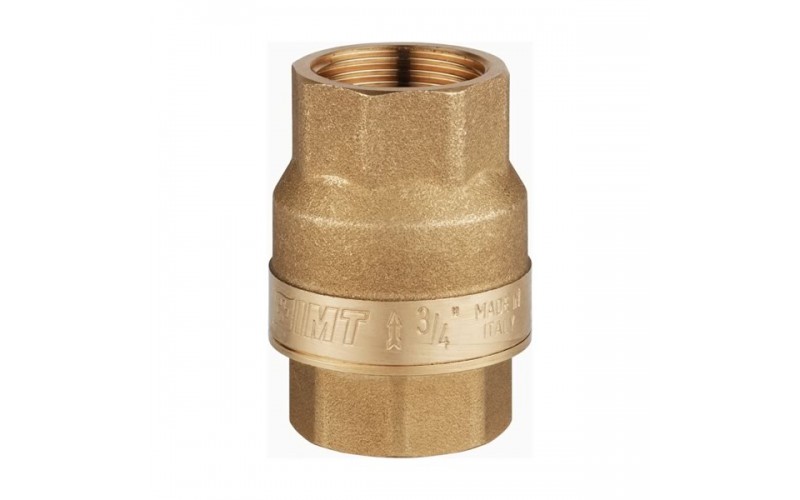

Check Valve IMT Switzerland Spring Type, Suitable for Pressure Pumps
PN 16 (232 psi) up to 2“, PN 8 (116 psi) from 2 1/2”
Fig. 235.O completely in brass
PN 25 (362,5 psi) up to 2”, PN 12 (174 psi) from 2 1/2”
Temperature rating max. 100°C (212°F) water (no steam, depending on pressure)
Available also for Solar Applications
Brass Body
Stainless Steel Spring
Minimal Opening Pressure appr. 0,02 bar (0,29 psi)
Check Valve IMT Switzerland Dimensions in mm
| 23504 | 23504.O | 1/2” | 29 | 47 | 15 | 9,6 | 25 |
| 23506 | 23506.O | 3/4” | 38 | 52 | 20 | 11,2 | 31 |
| 23508 | 23508.O | 1” | 48 | 62 | 25 | 13,5 | 38 |
| 23510 | 23510.O | 1 1/4” | 56 | 65 | 32 | 12,5 | 47 |
| 23512 | 23512.O | 1 1/2” | 69 | 73 | 40 | 14,5 | 54 |
| 23516 | 23516.O | 2” | 83 | 80 | 48 | 16 | 66 |
| 23520 | 23520.O | 2 1/2” | 103,6 | 92,5 | 64 | 16 | 83 |
| 23524 | 23524.O | 3” | 121,4 | 104 | 76 | 18 | 96 |
| 23532 | 23532.O | 4” | 156 | 118,5 | 98 | 20 | 122 |
