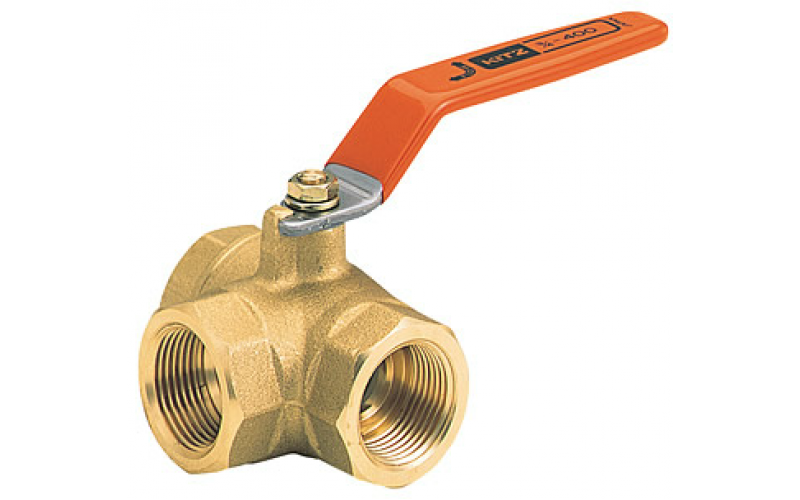

Ball Valve TN Brass KITZ Japan

  • Brand: KITZ Japan
  • Product Code: TN
  • Availability: In Stock

Available Options

TYPE 400 FORGED BRASS, Ball Valve TN Brass, BALL VALVES,STANDARD BORE,3-WAY 2-SEAT L-PORT,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
3-WAY
Single Reduced Bore
Screwed body cap, 2-seat, L-port design,
Blowout-proof Stem, Double O-ring stem seals
Threaded ends to BS21.
W.O.G. non-shock 2.76 MPa (400 psi), W.O.G. 150℃ 0.69 MPa (100 psi)
This valve is not designed to handle toxic gases. Use specially designed or certified valves for flammable gas service.

Test Pressure(MPa) Inspection Standard:KITZ St’d-1
*=Periodic Test
Water
Air
Shell 4.12*(1/4-3inch,8-80mm) 0.6(1/4-3inch,8-80mm)
Seat 0.6(1/4-3inch,8-80mm)
Back Seat
